The Furhat Robot Platform

Physical Dimensions

  • Robot Weight: 3.5 kg
  • 410mm x 270mm x 240mm (HxWxD)
  • Eye Height: ~300¹ mm

Onboard Camera Sensor

  • RGB Sensor Type
  • 120° diagonal FOV
  • 3.4 MP camera streaming 640x480 pixels
  • Fixed Focus for interaction space
  • Automatic Exposure control

Onboard Microphones

  • 2 x 100Hz~10kHz digital, PDM stereoscopic digital MEMS omnidirectional microphones, set 180mm apart on the robot’s shoulders.

Bundled USB Microphones

  • 4 x MEMS omnidirectional digital mics
  • Far-field voice pick-up up to 5m
  • DOA (Direction of Arrival)
  • AEC (Automatic Echo Cancellation)
  • AGC (Automatic Gain Control)
  • NS (Noise Suppression)
  • Sensitivity: -26 dBFS (Omnidirectional)
  • Acoustic Overload Point: 120 dBSPL
  • 360° pick-up pattern

Projection and Optics

  • 165² lumens brightness
  • 1280x720³ Resolution
  • 1400:1 Contrast
  • Texas Instruments DLP®

Furhat Mask

  • The mask is based on a Furhat proprietary polymer blend that is optimized for optical performance in conjunction with Furhat Projection & Optics system.

Motion Platform

  • 3 Degrees Of Freedom (DOF)
  • Pan/Tilt/Roll with silent off-axis panning
  • 3 x high speed servos, active feedback
  • 0.088° resolution
  • 25 kg·cm stall torque
  • Metallic gears

Rotary Controll

  • Rotary thumbwheel controller with click function controls volume & on face menu.

Computer Platform

  • Intel Core i5 CPU, up to 3.40 GHz
  • 8GB RAM
  • 120 GB SSD mass storage
  • Iris Plus 640 GPU

Speaker System

  • Dual speakers are optimised for human voice frequencies and angled to support the interaction space.
  • 2.5”
  • 30W Power
  • Full range type
  • Magnetic type
  • Aluminium cone

Rear I/O Panel

  • Power On/Off Switch
  • 19⁴ Volt/90 Watt power input jack
  • 802.11ac WiFi, 2.4/5.0 Ghz
  • Wired Ethernet Port - 10/100/1000
  • 2 x USB A supporting USB 3.0
  • 1 x USB-C⁵

LED Ring

  • Enables a silver lining effect, allowing the robot to signal a presence outside the container of its body, further increasing its presence in a space when needed. Uses 88 x RGB LED, controllable from FurhatOS/Skills.

Product Packaging

  • Robot Weight: 3.5 kgShipped in protective foam box, hard shelled protective case as optional add-on

Environmental & Installation

  • Ambient Temperature: 5-25° C / 41-77° F
  • 200 mm ventilation clearance behind unit

External Monitor Support

  • The Furhat Platform provides support for an external monitor connected via the robot’s USB-C port. The officially supported monitors are:
  • ELO 1502L – Full HD (1080p version)
  • Dell P2418HT 24” Touch

The Furhat Robot

Inspired by human anatomy and aesthetics, the Furhat Robot is the result of years of research into social and conversational humanoid robots.

The Furhat Robot

Inspired by human anatomy and aesthetics, the Furhat Robot is the result of years of research into social and conversational humanoid robots.

Human-centric design

To interact with us robots need to see, hear, speak, and express themselves as naturally as we can. Furhat is specifically designed for human social interactions using a multimodal system that allows it to interact with us just as we interact with each other.

The Furhat mask

Furhat's swapable polymer magnetic mask is designed with adult human curvatures to display human facial elements of any size and shape, including eyebrows, eyes, nose, mouth, lips and more. Child and Anime masks are also available on demand.

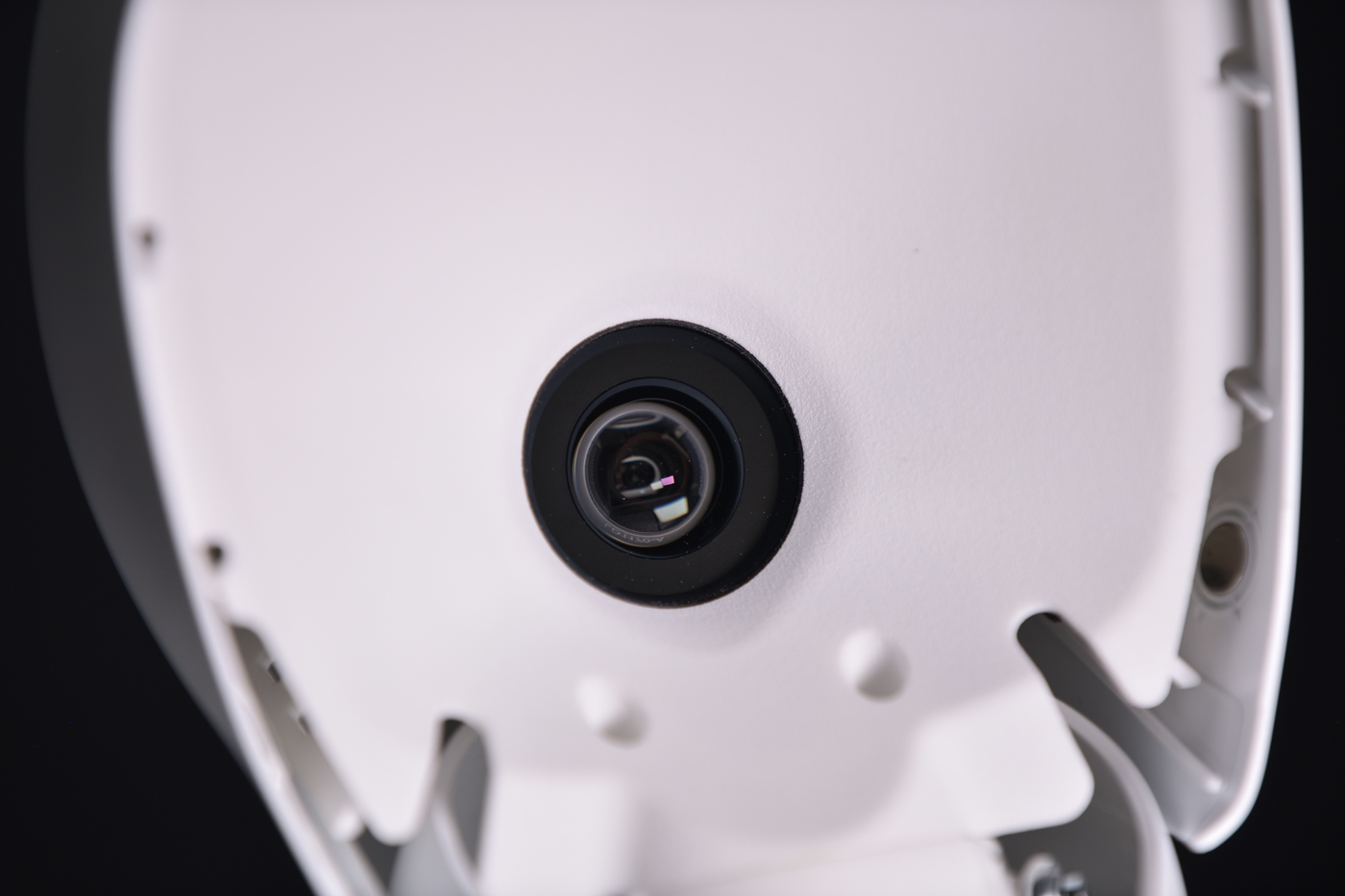

Back-projected face

Furhat's back-projection system gives it real time high-fidelity rendering of dynamic facial expressions and lip-syncing through a smart 3D graphics face engine.

Smart vision system

Furhat's visual perception system is comprised of a 120 degree diagonal field-of-view camera that includes a highly accurate face detection based on state-of-the-art deep learning (single-shot-detector) model, depth estimation, and spatial modelling.

HiFi audio System

Built-in microphones and an external USB multi-array microphone with noise cancelation and direction of arrival for audio localization. High fidelity speakers with volume control that give Furhat a clear and distinguishable voice in noisy environments.

LED ring

Furhat's LED ring enables a silver lining effect, giving the robot the ability to signal when events occur in the system, further increasing its presence in a space when needed.

Connection ports

Furhat comes with several ports for input and output, including an ethernet port, audio jack and USB ports for connecting devices such as microphones, headphones, keyboards, and more.

Human-centric design

To interact with us robots need to see, hear, speak, and express themselves as naturally as we can. Furhat is specifically designed for human social interactions using a multimodal system that allows it to interact with us just as we interact with each other.

The Furhat mask

Furhat's swapable polymer magnetic mask is designed with adult human curvatures to display human facial elements of any size and shape, including eyebrows, eyes, nose, mouth, lips and more. Child and Anime masks are also available on demand.

Back-projection

Furhat uses a back-projection system for real time high-fidelity rendering of multi-layered textures that can be customized to create a life-like and dynamic face of any age, ethnicity and gender.

Smart vision system

Furhat's visual perception system is comprised of a 120 degree diagonal field-of-view camera that includes a highly accurate face detection engine based on state-of-the-art deep learning (single-shot-detector) model, depth estimation, and spatial modelling.

HiFi audio system

Built-in microphones and an external USB multi-array microphone with noise cancelation and direction of arrival for audio localization. High fidelity speakers with volume control that give Furhat a clear and distinguishable voice in noisy environments.

LED ring

Furhat's LED ring enables a silver lining effect, giving the robot the ability to signal when events occur in the system, further increasing its presence in a space when needed.

Connection ports

Furhat comes with several ports for input and output, including an ethernet port, audio jack and USB ports for connecting devices such as microphones, headphones, keyboards, and more.

Furhat’s customizability enables unlimited opportunities for research and development.

Life-like facial animations

Furhat comes with an automatic lip-syncing model and gestures such as blinking, smiling, nodding, frowning, and other gestures that can be controlled individually or fully automated with Large Language Models.

Customizable appearance

The groundbreaking combination of back-projected facial animations, replaceable masks and face customization tools make it easy to create expressive characters of any age, ethnicity and gender.

An open platform that evolves with you and improves with every technological breakthrough on the market.

Multi-user tracking

Furhat uses computer vision to track up to 10 multiple users in real-time, estimate user engagement and distance with the ability to distinguish between them and remember them during the course of an interaction. You can also easily stream your video feed to external models for more advanced user and environment analysis.

Advanced NLU engine

Multilingual conversations

Furhat has support for more 120 languages and 200+ voices from leading cloud service providers including Microsoft Azure, Amazon and ElevenLabs.

Rapid turn-taking

Furhat is designed for natural conversations with rapid turn-taking. You have detailed control for managing initiative, turn-taking, interruptions, error handling and more.

LLM-automation

You can also fully automate conversations by replacing your Furhat's NLU engine with any Large Language Model.
Hardware overview

Furhat Software and Tools

Build applications from scratch with the Furhat SDK or fully automate them with our FurhatAI Creator tool.

The Furhat SDK
FurhatAI Creator

Technical specifications

Want to get a detailed overview of Furhat's modular system? View or download the technical specifications below.

View specifications
Download full PDF
